To update the WiFi Firmware please go to the following link for a guide : How Do I Update The WiFi Firmware, WS-2000 And WS-5000

Version 4.3.3:

• Adjust piezio gain for weather station.

Version 4.3.2:

• Optimized domain name resoloution.
• Optimized stability of uploading to custom servers.
• Fixed exception caused by user customization.

Version 4.3.1:

• Optimized WU server dns parsing.
• Fixed bug that effected third party custom mode.

Version 4.3.0:

• Improved domain name resoloution
• Improved stability of uploading to custom servers.

Version 4.2.8:

• Adds path for custom server setup.
• Able to upload Co2 sensor data

Version 4.2.6:

• Fixes issues with connecting to Arris, Asus and several other routers.

Version 4.2.4:

• Supports alert if leak detector is offline for 10 minutes.

Version 4.2.2:

• WS-5000: Supports low battery indicator push to AmbientWeather.net server.

Version 4.2.1:

• Supports leak detector, soil moisture sensor data push to AmbientWeather.net server.

Version 4.2.0:

• Supports lightning detection data to AmbientWeather.net (Model WS-2000 and WS-5000 only).
• Supports leak detection data to AmbientWeather.net (Model WS-2000 and WS-5000 only).

Version 4.1.9:

• Supports soil moisture data to AmbientWeather.net (Model WS-2000 and WS-5000 only).

Version 4.1.8:

• Supports PM2.5 indoor sensor data to AmbientWeather.net (Model WS-2000 and WS-5000 only).

Version 4.1.7:

• Improves pairing with Android 9 OS phone.

Version 4.1.6:

• Fixes low battery bug for PM2.5 (Model WS-2000 and WS-5000 only).  It would falsely alarm the low battery alert.

Version 4.1.5:

• Firmware improves RF sensitivity.
• WiFi setup user interface improved.
• Console setup user interface improved (WS-2000 only).
• Bug fixed with UART0 communication (WS-2000 only).
• Improved data stream to AmbientWeather.net
• Corrected low battery bug for PM2.5. It would falsely alarm the low battery alert (WS-2000 only).
• RAM optimized (WS-2000 only).
• Rain calculation algorithm optimized (WS-2000 only).
• Backlight on/off control algorithm improved (WS-2000 only).

Version 4.1.4:

• Model WS-2000 only. Fixes low battery bug introduced in 4.1.2 for PM2.5 sensor.

Version 4.1.3:

• Model WS-2000 only. PM2.5, PM2.5_24h and its low battery, soil moisture sensor data push supported.

Version 4.1.2:

• Model WS-2000 only. Adds support for PM2.5 sensor to AmbientWeather.net

Version 4.1.1:

• Fixes rounding and sign error when temperature is between -10 and 0 degF.

Version 4.0.10:

• One customer reported their weather station would go offline every day at Midnight, so we rolled back the SDK but kept all of the other fixes in 4.0.9 until we can further evaluate the SDK.

Version 4.0.9:

• SDK is updated to official release 3.3.1. The WiFi connection is much faster and more stable.
• Time sync ping changed from Wunderground to AWS. The AWS time server is much more reliable.
• Weathercloud ID and password are verified for exactly 16 and 32 bytes, otherwise, no connection is attempted.
• Some customers reported WiFi disconnecting at Midnight. We were resetting the WiFi module every night to force a reconnect once per day, but we removed this logic.

Version 4.0.8:

• Fixed bug where temperature was set to 0.0 and Midnight.

Version 4.0.7:

• WiFi SDK update.

Version 4.0.6:

• After DNS lookup is verified, it will ping once per minute.

Version 4.0.3:

• Previous to Firmware Version 4.0.3, DNS queries were performed every 5 seconds, which was excessive.

• With Version 4.0.3, DNS queries are now performed once every 15 minutes.

Preventive Maintenance and Reset of the Outdoor Sensor Array. (Printed Part: WH65B)

To ensure that the outdoor weather station array stays in proper working condition please follow the steps below:

1.Replace the batteries. We recommend fresh Lithium Energizer and here is why:Why Are Lithium Ultimate Batteries Recommended And Not Alkaline Or Rechargeable Batteries?

2. Make certain the rain gauge is level. If not perfectly level, the tipping mechanism will not work properly and under report rain.

3. Visually inspect the rain funnel. Is the funnel missing? To replace the funnel, please visit: https://www.ambientweather.com/amws2902funnel.html

4. Check the funnel for any debris. Clean the funnel.

5. Remove the funnel and check for any debris that may be affecting the tipping mechanism. Tip the mechanism back and forth. Does the rain update on the console? Check for any bugs or dirt. Clean with a damp, soft cloth.

6. In heavy downpours or sideways wind, the rain droplets can “bounce” out of the rain gauge. Use Teflon spray: https://www.amazon.com/DuPont-Silicone-Lubricant-Aerosol-14-Ounce/dp/B00D3ZKVAS to prevent accumulation of the droplets on the walls of the rain gauge.

How to Reset the Outdoor Sensor Array:

1. Cover the solar collector to shut of the solar energy source.
2. Remove the batteries.
3. Let sit for up to 24 hours to drain the solar capacitor.
4. Reinsert fresh batteries.
5. Press the reset button (#10, below) for a full minute with a pointed object, such as a pen tip:

6. Uncover the solar collector.

7. LED(#11) should flash once per 16 seconds. If it is not flashing, the sensor array must be replaced.

8. Power down and up the console to resync(Remove batteries and AC Adapter then reinsert)

9. May take a few minutes for the outside array information to display on the console

*If the weather station array is not communicating properly with the indoor console AFTER performing ALL of the steps above then the outdoor sensor array OR individual sensor/sensors will need to be replaced.

**Why Preventive/Routine Maintenance needs to be done:

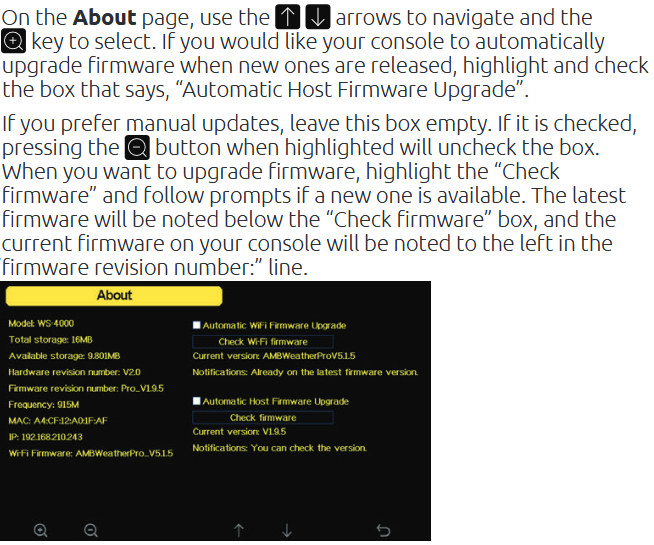

To update the firmware on your display tablet:

• Download the latest bin file (below) to your your computer. Make a note of where you saved this file:

Ambient Weather WS-2000 and WS-5000 Firmware Download Center

• Copy the factory.bin (ensure filename is just factory.bin) to your MicroSD Card (the SD card must be empty).
• Power down your display console by removing AC power.
• Insert the SD Card into the display console.
• Power up the display console.
• The console will verify the firmware was updated.
• Power down the console after complete. Remove the SD Card when the console is powered down.

To update the WiFi firmware, you must first download the awnet app for mobile devices from the Apple Store or Google Play Store:

Android Devices:  https://play.google.com/store/apps/details?id=com.dtston.ambienttoolplus

iOS Devices:  https://itunes.apple.com/us/app/awnet/id1341994564

WiFi Firmware version history: https://ambientweather.com/faqs/question/view/id/1444/

To update the WiFi firmware on the WS-2000/WS-5000 console , launch awnet   from your mobile device.

From the Device Info panel, tap on your device (in the example below, three devices are connected to the WiFi network):

On the bottom right is the current WiFi firmware version of your console. If there is an upgrade available, tap on the upgrade link:

To report to AmbientWeather.net, you must:

1. own an Ambient Weather branded weather station that directly connects to the Internet (models listed below).

2. own a third party weather station that connects to the WeatherBridge:
more info…

3. own a Davis Instruments weather station and nano Wi-Fi data logger:
more info…

Model	Image	MAC Label
ObserverIP (IP series)		printed on the bottom of the IP module more info…
WS-2902 Series		printed on the back of the console more info…
WS-2000		Displayed in the ‘Weather Server’ section of the console more info…
WS-5000		Displayed in the ‘Weather Server’ section of the console more info…
WS-8478A WS-8480		printed on the back of the console more info…
WS-8482		printed on the back of the console more info…
WS-1001-WiFi WS-1002-WiFi		Displayed in the ‘Weather Server’ section of the console more info…
nano		Accessed from the User Interface panel: more info…
Weather Bridge		Accessed from the User Interface panel: more info…
KestrelMet 6000 Weather Station
WS-1965		Accessed from the User Interface panel and console: more info...

1. The WS-2000 is a newer model but shares the same sensor array as the WS-2902A.
2. The WS-2000 supports up to 8 additional thermo-hygrometers:
   https://www.ambientweather.com/amwh32b.html
3. The WS-2000 has a separate indoor thermo-hygrometer-barometer. The WS-2902A contains these sensors inside the console.
4. The WS-2000 has a nicer display console (TFT) vs. the WS-2902 (Color Film LCD), which has a limited viewing angle.
5. The WS-2000 is easier to set up with WiFi and the Internet, because the settings are entered on the console and not from an app.
6. Both weather stations support WiFi and Internet cloud services, including AmbientWeather.net.

There are two versions of firmware:

• Console Firmware
• WiFi Firmware

The WS-2000 firmware must be updated to the following revisions in order to support the PM25, PM25IN, and AQIN Sensor:

• Firmware Revision Number (console): 1.4.4
• WiFi Firmware: AMBWeatherV4.1.4

To check the firmware version:

How do I Check my Firmware Versions

You must upgrade both versions of firmware for proper PM25 sensor operation:

Console Firmware:

How do I update firmware, WS-2000?

WiFi Firmware:

How do I update WiFi firmware, WS-2000/WS-5000

• The gust is the maximum wind speed in the 16 second update period (sampled once per second), whereas the wind speed is the 16 sample average. It is difficult to “perceive” an average wind speed.
• We recommend you switch the display console to gust. It will typically read 1.5 to 2.5 x higher, and agrees better with human perception and what you see outside. To switch the display to gust, press the WIND button.
• View the max gust of the day (or since the last reset, based on your reset settings). Press the MAX/MIN button once and the max values will be displayed. Next, press the WIND button to see the max gust of the day (or since the last reset):

• Does this value agree with your perception or other stations in the area?
• What is displayed on AmbientWeather.net is only sampled once every minute and saved to graphs and data once every 4-5 minutes. The gust will likely be missed at this sample rate.
• AmbientWeather.net does record the maximum gust of the day in the Wind Speed Tile. The example below shows a peak daily wind gust of 15.0 mph:

• Unless your cups stop abruptly and do not coast down, there is likely nothing wrong with your weather station.
• You can send us an email support@ambientweather.com with installation images, or post them on our Ambient Weather Network User Group on Facebook: https://www.facebook.com/groups/ambientweathernetwork/ and get a second opinion from thousands of users.
• If it is extremely cold (below freezing), it is possible that the wind gauge has frozen up. This is common to all weather stations with moving parts.You can spray the top of the unit with teflon snow and ice repellent like this:https://www.amazon.com/DuPont-Teflon-Snow-Repellant-10-Ounce/dp/B0031T82NObut this is not 100% effective.
• We have a detailed discussion here:

Wind Speed or Wind Gust Appears to Read Low.

To connect to Wi-Fi and the Internet, select the Settings icon and then the down arrow  until the Wi-Fi Scan Setup field is highlighted.  Select the plus button  to perform a Wi-Fi scan.

Scroll down to select your Wi-Fi network (2.4 GHz) and press the Enter key and enter the Wi-Fi password.

Press up or down , left or right to scroll to the character, and press to select the enter  character. Press OK when complete. Press  to return  to the WiFi Network setup page. Leave the password blank if the WiFi network is not encrypted.

The Wi-Fi signal strength icon is displayed on the home page. If wireless connectivity is successful, the Wi-Fi icon on the top left-hand side of the display tablet.

You can locate an official source for your area to cailbrate by visiting https://ambientweather.net/baro

To calibrate the relative pressure, select the Calibration Panel on your display console by pressing the Settings icon three times:

From the calibration panel, adjust the relative pressure to the reference pressure in your area:

Press   to highlight the REL Barometer field.

Press to highlight the significant digit you wish to change. Press  or  to adjust the digit up or down.

For details on relative pressure calibration, please visit:

Relative Barometric Pressure Does Not Match Official Source.

The WH32B thermo-hygrometer-barometer sensor will always display the measured pressure. The relative pressure is calibrated on the console.

1. The WS-2000 will not connect to a guest account.
2. The WS-2000 series connects to the 2.4 GHz band on your router. Make sure the 2.4 GHz band is operating and connected to the Internet.
3. If you own a Mesh Network or multiple repeaters, power off all of the secondary nodes, and leave the primary node (connected to the Internet) on.
4. Reboot the router.
5. Use the Hidden SSID feature to enter your SSID (whether it is hidden or not).
   Be careful, the SSID and password are both case sensitive.

6. Perform a factory reset on the console.
7. Contact support@ambientweather.com for assistance and include your router type.
8. One option is to add the ObserverIP Module (see below).https://www.ambientweather.com/amobserverip.html

How to re-register a sensor through the Sensor ID screen.

https://ambientweather.com/faqs/question/view/id/1502/

Enter Setup mode as shown below.

There are two versions of firmware:

• Console Firmware, which updates the console layout and general operation.
• WiFi Firmware, which is specifically for the WiFi chip.

To check the versions of firmware you are running, tap the Settings button  four times to get to the Factory page.

Select up  to highlight About Display, and select plus .

In the example above:

Firmware Revision: 1.0.9

WiFi Firmware Revision: V4.0.2

Please follow the recommended steps when using a Mesh Network:

1. Please make sure firmware is updated. Orbi: https://www.netgear.com/support/product/orbi.aspx#download , eero: https://support.eero.com/hc/en-us/articles/213376263-How-can-I-check-to-see-if-there-is-an-eeroOS-update-available-on-my-network– , Google: https://www.support.com/how-to/how-to-update-a-google-wifi-mesh-router-12703
2. On the Mesh Network (examples,  Orbi, eero or Google), temporarily turn off all of the secondary nodes, leaving only the primary node (the node connected to the Internet) powered up.If you use a Virtual Private Network (VPN), temporarily turn this off.
3. Make sure 2.4GHz SSID and the 5GHz SSID are different names
4. Temporarily disable 5GHz network while going through setup
5. Consoles will not connect to Guest accounts
6. Consoles will not connect to Hidden SSID

Reset your Network then connect to wifi: Perform A Network Reset

Make sure the consoles firmware is up to date:

WS-1000-WiFi, WS-1001-WiFi, WS-1002-WiFi: How Do I Update The Console Firmware, Observer Series ?

WS-2000: How Do I Update Firmware, WS-2000/WS-5000?

WS-2902A: How Do I Update Firmware, WS-2902A, WS-2902B, WS-2902C ?

WS-8478&WS-8480:  Ambient Weather WS-8478 Falcon Download Center

**If you are using an ios device(ipad, iphone) and it just shows ‘wifi’ for your networks SSID then you may need to use an android device to get connected.

The WH31B is an 8-channel thermo-hygrometer sensor and is an accessory. It is designated as Channel 1-8 sensor on AmbientWeather.net.

The WH32B is a single channel thermo-hygrometer-barometer. It is designated as the indoor sensor on AmbientWeather.net.

It is included with some of our weather stations, including the WS-2000. It is optional for the WS-1550-IP weather staton.

Virtual Weather Station Download Center WeatherSnoop For Mac How Do I Use Cumulus Software With EasyWeather?

EasyWeather Software for PC

EasyWeather Software For WS-1001-WiFi, WS-1002-WiFi Weather Station For PC And Mac

WS-3000 EasyTemp for PC

Ambient Weather VW-ANET AmbientWeather.net Website Access for Nano, WeatherBridge or WeatherBridgeProOur Price: $100.00

Ambient Weather ObserverIP Download Center

Ambient Weather WS-3000 Download Center

AmbientCamHD3 Download Center

AmbientCamHD and AmbientCamHDA Download Center

AirBridge Download Center

AmbientCam Download Center

WeatherBridge Download Center

Ambient Weather WS-8478 Falcon Download Center

Ambient Weather WS-1001-WiFi, WS-1002-WiFi Download Center

Ambient Weather WS-50 Firmware Download Center

Ambient Weather WS-2000 Download Center

The following sensors can be used with the WS-2000,WS-5000,and WS-4000 display consoles, and can be enabled or disabled on the Sensors ID Setup panel: https://ambientweather.com/faqs/question/view/id/1486/

• WH65 Sensor array for model WS-2000:

          https://ambientweather.com/amws2902array.html

• WH25. Thermo-Hygrometer-Barometer for models WS-1201-IP, WS-1401-IP and WS-1002-WiFi: (Sensor is discontinued. Replaced by the WH32B sensor.)

          https://www.ambientweather.com/amwh32b.html

• WH26 Also known as WH32E. Outdoor sensor allows you to substitute your existing sensor array thermo-hygrometer. (Sensor is discontinued. Replaced by the WH31E sensor.)

          https://ambientweather.com/wh31e-wireless-temperature-humidity-sensor

• WS80 Outdoor array for WS-5000 weather station.

          https://www.ambientweather.com/amws5000.html

• WH40 Rain gauge for model WS-5000.

           https://ambientweather.com/amwewsreraco.html

• WH32B Indoor thermo-hygrometer-barometer for models WS-2000, WS-5000,WS-4000.

          https://www.ambientweather.com/amwh32b.html

• WH31E Optional temperature and humidity sensor for the WS-2000,WS-5000, WS-4000. Labeled as T&H 1-8 on sensor page.

          https://ambientweather.com/wh31e-wireless-temperature-humidity-sensor

• WH31P Optional temperature probe for WS-2000,WS-5000,WS-4000. Labeled as T&H 1-8 on sensor page.

          https://ambientweather.com/wh31p-water-proof-probe-temperature-sensor

• WH3L Lightning detector for WS-2000,WS-5000,WS-4000

          https://ambientweather.com/wh31l-lightning-detector

• WH31LA Leak Alarm for WS-2000,WS-5000,WS-4000

          https://ambientweather.com/wh31la-leak-detector

• PM25 Outdoor particulate monitor for WS-2000,WS-5000,WS-4000

          https://ambientweather.com/pm25-wireless-outdoor-particulate-monitor

• PM25IN Indoor particulate monitor for WS-2000,WS-5000,WS-4000

          https://ambientweather.com/pm25in-wireless-indoor-particulate-monitor

• AQIN Indoor air quality and CO2 sensor for WS-2000,WS-5000,WS-4000

          https://ambientweather.com/indoor-wireless-air-quality-monitor-aqin

• WH51RF Refrigerator/Freezer sensor for WS-2000,WS-5000,WS-4000. Labeled as T&H 1-8 on sensor page.

   https://ambientweather.com/wh51rf-wireless-refrigerator-freezer-temperature-humidity-sensor

• WH51LW Leaf wetness sensor for WS-2000,WS-5000,WS-4000

          https://ambientweather.com/leaf-wetness-sensor-wh51lw

• WH31SM Soil moisture sensor for WS-2000,WS-5000,WS-4000.

          https://ambientweather.com/wh31sm-soil-moisture-sensor

• WH31PF Pool temperature sensor for WS-2000,WS-5000,WS-4000. Labeled as T&H 1-8 on sensor page.

          https://ambientweather.com/wh31pf-wireless-waterproof-floating-thermometer

To clear the rain totals, go to the calibration screen and manually set each rain increments to 0.00:

Tap the Settings icon three times to page to the Calibration Settings.

Press   to Enter the Calibration or Correction Mode.

Scroll down to adjust the daily, weekly, monthly and yearly rain totals.

No, it does not. It comes with a bracket and two U-Bolts and to tighten around a 1 to 2″ diameter pole, which you supply.

Check to see if the WiFi icon  is on (#2 below):

If the WiFi icon is on:

1. Power down and up the console by removing AC power. If the problem persists,
2. Reboot your router.

If the WiFi icon is off:

1. Power down and up the console by removing AC power. If the problem persists,
2. Reboot your router. If the WiFi icon is still off, reconnect your console to your wireless router:

I Cannot Connect To My Wireless Router, WS-2000/WS-5000

There may be a firewall issue. To check, press the Set icon  on the display console.

Tap the down arrow button  to highlight Setup and Time Setup.

Press  to display the Time Settings Page.

Press the arrow button  to highlight the Time Server Update box.

Press  to update.

If you receive an error, this means that both inboard and outboard Port 80 commands are being blocked.

If you do not receive an error (Next Synchronization with time shown), this means only outboard Port 80 commands are being blocked.

If you own a dual band router, make sure the 2.4 GHz band is connected to to the Internet and no commands are getting blocked.

Yes, you can add as many consoles as you like.

The WS-2000 array works with four different consoles:

1. WS-2000,
   which is the one that came with your weather station.


2. WS-2902D
   which is a lower quality but less expensive color film LCD
3. WS-1900A
   which is identical to the WS-2902D console, but does not have a WiFi chip:

In order for your sunrise and sunset to be correct, your date, time zone, longitude and latitude must be entered correctly.

To find your longitude and latitude, enter your address into Bing Maps:

https://www.bing.com/maps

1. To view your longitude and latitude, select the Tools icon to enter the Setup screen. Press the down arrow button  until Longitude_Latitude Setup is selected, and press Plus  to view the settings. Make sure your longitude, latitude and hemisphere settings (north vs south, east vs west) are correct.Note that if your longitude is negative, choose the western hemisphere. If your latitude is negative, choose the southern hemisphere.

2. To view your time zone settings, select the select the Tools icon  to enter the Setup screen.  Press the down arrow button  until Date and Time Setup is selected,  and press Plus  to view the settings. Make sure your time zone is set correctly.

The most common issues are:

1. Longitude and latitude are reversed.
2. The hemisphere is selected incorrectly.
3. The time zone is set incorrectly.

Reset to Factory Default. Clears all stored memory, calibrations and other variables to factory default.

To restore your display console to factory default, press the Tool icon four times to display the Factory Page.

Press   to select Reset to Factory Default. Press or key to popup the Message Box ”Are you sure you want to reset to factory default?” Press   to select Yes. Press the  key to confirm the selection.

How do I re-register the indoor/outdoor sensors on my console

1. Navigate to the consoles Factory screen. Press the ‘set’ key 4 times

2.Navigate to Re-register Transmitter for either Indoor or Outdoor sensors

If your outdoor sensors are not picked up in the next 2-3 minutes, bring the sensors indoors within 10-25' of the console, check the battery compartment for corrosion, check the battery voltages using a digital battery tester and try Steps 1 and 2 again

WS-2000 Re-register Transmitter Outdoor

WS-5000 Re-register Transmitter Outdoor

Yes, you can, but you will need to change the following Gain Factors on the console:

Wind Gain: 0.46

Rain Gain: 0.85

Here is how you change the gain factors on the WS-1000 series console:

1. Press the Settings button three times to display the calibration panel:
2. Press the down button until the temperature field is highlighted, and press plus  or minus  to adjust. Press the left  or right  button to change each multiple value.
3. Press the return button  to return to the main screen.

IOS:

Ambient Weather Dashboard

• Free.
• The Ambient Weather Network is an ad-free weather platform enhanced by a powerful network of weather stations providing the most accurate hyperlocal conditions for your neighborhood, activity, or business. Connect your compatible Ambient Weather Station to access your data remotely and join one of the fastest-growing weather communities. Personalize your data tiles, set alerts, and share your weather updates with other weather enthusiasts - all for free!

ANDROID:

Ambient Weather

• Free.
• The Ambient Weather Network is an ad-free weather platform enhanced by a powerful network of weather stations providing the most accurate hyperlocal conditions for your neighborhood, activity, or business. Connect your compatible Ambient Weather Station to access your data remotely and join one of the fastest-growing weather communities. Personalize your data tiles, set alerts, and share your weather updates with other weather enthusiasts - all for free!

IOS:

awnet

• Free.
• The awnet app allows you to connect your Ambient Weather Station WS-2000, WS-2902A, WS-2902B, WS-2902C or WS-5000 console to your WiFi router and the internet. The WS-2902As were first sold in 06/2018.

ANDROID:

awnet

• Free.
• Connect your WS-2902A and other Ambient Weather Stations to WiFi, your router and the Internet, allowing you to publish on AmbientWeather.net and Wundeground.com.

IOS:

AmbientTool

• Free.
• The AmbientTool app allows you to connect your Ambient Weather Station WS-2902 console (sold from 12/2016 until 05/2018) to your WiFi router and the internet.

ANDROID:

Ambient Weather Osprey Tool

• Free.
• The Ambient Weather Osprey Tool allows you to communicate to your Osprey display console or internet module's WiFi connection, and program the connection to your wireless router and cloud services, such as Wunderground.

Why does my PM25/PM2.5 not show up on AmbientWeather.net/ Ambient Dashboard app?

You will need to update your consoles firmware and your wifi firmware to the most current versions as shown below.

How Do I Update Firmware, WS-2000/WS-5000?

How Do I Update The WiFi Firmware, WS-2000 And WS-5000?

The lightning bolt icon signifies the Dew Point is greater than 70 degF, which is conducive for lightning in the area. It is just a prediction and the weather station does not sense lightning directly.

To edit the label name on the console, select the Settings button , and then the down arrow  9 times until Multi Channel Sensor Setup is highlighted and press plus  to view the channel settings.

To edit the channel name, Press  or  key to select the channel name.  The name field will turn green.

Press the   key to view the keyboard, and enter the sensor name. Press   to scroll to the character and press   to select the character. Press ‘OK’ to save your newly labeled Sensor. Press   to return to the setup page.

Console : Input 5V DC; 6.5′ 110-240V 50-60 Hz wall charger included.

Power Consumption: 0.5 Watts (1.25 Watts during WiFi configuration mode)

DC barrel connector dimensions: 7.5mm ( L ) x 3.5mm ( OUT D) x 1.35mm ( Inner D)

If there is an exclamation point ! or mark next to the WiFi icon on the WS-2000 display, it means the display is connected to WiFi but the WiFi is not connected to the Internet.

Make sure the 2.4 GHz band on your router is connected to the Internet.

If the problem persists, try rebooting your router.

You can adjust the month in which the yearly rain resets to zero. The default is January.

To change this to a different month, select the Setup Page.

Tap the Settings button     to view the Setup page.

Select up to highlight Rainfall Season and press up or down   to change the month.

The AC Adapter Size Requirements and Specifications For The WS-2000 Series Console are as follows:

• Console : Input 5V DC; 6.5′ 110-240V 50-60 Hz wall charger included, Power Consumption: 7.5 Watts, 1.0A output power rate.
• DC barrel connector dimensions:  7.5mm ( L )  x 3.5mm ( OUT D) x 1.35mm ( Inner D)
• UL Rated.

Yes, you can, but you will need to change the following Gain Factors on the console:

Wind Gain: 2.17

Rain Gain: 1.18

Here is how you change the gain factors on the WS-1000 series console:

1. Press the Settings button three times to display the calibration panel:
2. Press the down button until the temperature field is highlighted, and press plus  or minus  to adjust. Press the left  or right  button to change each multiple value.
3. Press the return button  to return to the main screen.

Note that you will lose resolution on wind speed and wind direction due to the gain exceeding 1.0.

Example:

The wind gust has a resolution of about 1.1 mph.

How Is The Wind Speed And Wind Gust Calculated In The WS-2902 Weather Station?

If you changed the gain from 1.0 to 1.2 for example, the new resolution is:

1.1 x 1.2 = 1.32 mph.

WS-8478/WS-8478A/WS-8480

WS-1900/WS-2902/WS-2902A/WS-2902B

WS-2000/WS-2002/WS-5000

WS-1000/WS-1001/WS-1002

To view archived data from the WS-2000 and WS-5000 display consoles, select History button twice from the main console screen.

History_YYYYDD.csv: The history data file as shown in Figure 59.

YYYYDD.csv: The remaining data during the download. For example, if it takes three minutes to download, it the last three minutes of data.

The format of the data is csv (comma separated value) and can be opened in a spreadsheet program such as Microsoft Excel for advanced data analysis, with the following headers:

The SD Card must be inserted into the console and remain inserted to record channel 1-8 sensor data.  Whenever there is a new data set recorded, it will be added to this file." to "The SD Card must be inserted into the console and remain inserted to record channel 1-8 sensor data (WH31,WH31B, WH31E, WH31P, WH31PF, WH31L, WH31SM, WH31L, PM25, PM25IN and AQIN).  Whenever there is a new data set recorded, it will be added to this file.

The sensor data is not saved to on-board flash due to memory constraints; it is only saved to the SD card.

YYYYCH1A.csv is the channel sensor data and is only generated when the SD Card is inserted into the tablet.

It will not. The device will only connect to a wifi routers main 2.4GHz signal. It will not connect to a guest account or a Mesh networks secondary nodes. To get around having to use a wifi router you can use our Observerip module which will connect directly to a router via an ethernet cable and remove the need for wifi.

If the lightning sensor has a weak signal, please check the following:

1. Make sure both the console firmware: How Do I Update The WiFi Firmware, WS-2000 And WS-5000?  are up to date.
2. Make sure all the dip switches in the Lightning sensor are in the down position. Power down and up the sensor after changing the dip switch positions for changes to take effect.
3. Power down the WS-2000 console then power it back up.
4. Re-register the Lightning sensor through the Sensor ID screen.
5. Ensure that the sensor is within 300 ft line of sight with your indoor console.
6. We recommend the WH31-SRS as an enclosure for the lightning detector. https://ambientweather.com/wh31-srs-solar-radiation-shield

The AC adapter or console has a power issue.

1. If you have a volt meter, test the voltage output of the AC adapter.
2. The console or AC adapter needs replacing. We have a one year warranty. To replace under warranty, please visit: www.AmbientWeather.com/rma.html
3. If out of warranty, a replacement console is available here:
   WS-2000 Console: https://www.ambientweather.com/amws2000c.html
   WS-2000 Console AC Adapter:  https://www.ambientweather.com/amws1000acadapter.html

To view your back light settings, select the Tools icon from your display to enter the Setup screen. Press the down arrow button    until Backlight Setup is selected, and press Plus   to view the settings.

and check the Automatic control backlight to turn on and off the backlight at a specific time. To turn this feature off, uncheck this checkbox.

Lightning sensors detect a specific radio frequency wave form generated by lightning strikes.

However, electronic devices like motors starting (HVAC units, lawn equipment), and fluorescent lighting can emit noisy electromagnetic field (EMF) signature that can generate a false positive lightning strike.

To avoid false lightning strikes, move the detector away from any electrical noise-generating devices.

Although electrical noise can be random in nature, another way to determine installation location is by using a portable AM radio set in between stations where you can hear white noise only, and hold the radio close to the installation location. Any crackling heard on the radio may be detected by the WH31L lightning detector.

The following is a guide on how to properly mount the PM2.5/PM25 sensor, and perform preventative maintenance:

Mounting Guidelines:
Place the sensor in a shaded, well ventilated, non-moisture condensing area. Although the sensor is designed for outdoor use, it is best to mount in a well protected area, such as under a patio or carport.
The solar panel is sensitive to low light, but will still require monthly charging from the USB power port.
With PM2.5 sensors, fog reflects the light, and can result in a higher reading. This is characteristic to the inherent sensor design. The condition occurs during rainy or foggy weather.
Mounting orientation is not important. It can be mounted vertically or horizontally, as long as the vents are not blocked.

Preventive Maintenance:
Periodic cleaning of the PM2.5 sensors fan may need to be done if readings do not seem to change. To clean the fan you would remove the battery compartment of the sensor. Then carefully remove the sensor body from the protective shell. There are 2 small gauge wires connecting the solar cell to the sensor body. Please be careful to not pull on the wires and cause them to break. You would then use a can of compressed air to gently blow out any debris from the sensor fan(Warning: Do not use an air compressor)

Carefully separate the sensor body from the protective shell

ADVANCED CLEANING PROCEDURE:

(Note, if you’re not experienced/comfortable with performing something this complex please do not attempt as the unit may get damaged and void the warranty)

If an issue persists of the readings still being low then usually some pests have gotten into the internal sensor itself. You can carefully remove the screws from the main sensor housing and inspect/clean any pests, spider webs, eggs, etc. It is recommended to use Q-Tips to remove the debris.

To access the internal Detecting Chamber please refer to the images below.

Step 1: Remove the rubber coverings of the 3 screws.

Step 2: Remove the 3 screws.

Step 3: Remove the Protective Top Cover

Step 4: Carefully lift up and flip over the Sensor Board.

Step 5: Carefully clean the sensor board and Detecting Chamber then re-assemble in the reverse order.

If the display console only displays km, make sure your firmware is up to date. This issue was resolved in Version 1.6.3:

Ambient Weather WS-2000 And WS-5000 Firmware Download Center

Currently, at this time, no.

AQI is calculated individually for each pollutant. The overall pollutant with the highest AQI becomes the reported AQI. Since AmbientWeather.net only monitors (at this time) PM2.5, the only AQI value they could calculate would be the PM2.5 AQI. If, by chance, the PM10 AQI is higher than the PM2.5 AQI, then AmbientWeather.net would be reporting the wrong AQI value.

AQI, is a unitless index derived by the EPA.

Reference:

https://www.epa.gov/sites/production/files/2014-05/documents/zell-aqi.pdf

The U.S. EPA PM2.5 AQI model is on Page 11.

Can the PM25/PM2.5 sensor measure pollen?

No. Pollen doesn’t have much effect on the AQI for particle pollution. Most pollen particles are much larger than the particles we measure for the AQI. The size of PM2.5 is 2.5 micrometers in diameter or smaller while pollen particles are usually well over 10 micrometers. Pollen particles can sometimes rupture and break into smaller airborne particles in the PM2.5 range, but their contribution is too small to make a difference in the AQI.

If you changed your network configuration or your WiFi password:

1. Unplug power to modem, router and console (unplug AC adapter and/or remove batteries).
2. Plug power back into the cable Modem and let it sync back up with the network.
3. Plug power back into the Router and let it sync up.
4. Plug AC adapter back into the console.
5. Wait 5 minutes then click corresponding link below and follow the instructions.

If that did not get you connected the below guides for your weather station will help you get connected

WS-2902

Android Device: I Cannot Connect My WS-2902 To WiFi, Android

Iphone: I Cannot Connect My WS-2902 To WiFi, Apple Or IOS

WS-2902A, WS-2902B, WS-2902C: I Cannot Connect The WS-2902A,WS-2902B,WS-2902C Console To WiFi.

WS-2902D: How do I connect my WS-2902D to Wi-Fi.

WS-2000, WS-5000, WS-4000: How Do I Connect The WS-2000/WS-5000 To WiFi And The Internet

WS-1965: Connecting WS-1965 Console to WiFi

WS-50: How Do I Connect My The WS-50 To WiFi?

WS-100: How To Connect The WS-100 To Wifi And The Internet

WS-7078,WS-7079: How Do I Access The User Interface Panel, WS-7078 And WS-7079

WS-8480: How Do I Access The User Interface Panel, Falcon Series.

WS-8482: How Do I Connect The WS-8482 To WiFi And The Internet?

Clear History. Clears all of the historical data in archive memory. To clear the history, press the Tool icon four times to display the Factory Page.

Press    to select Clear History. Press  or  key to popup the Message Box ”Are you sure you want to reset to clear the history?” Press   to select Yes. Press the   key to confirm the selection.

1. Press the history key to review and clear the historical data.
2. Press the enter key to clear memory. The memory fill icon will be flashing.
3. Press and hold enter key for 3 seconds to clear memory.

Note:

The console stores up to 4080 complete sets of weather data with associated time and date stamp. The base station will lose all of the weather data if there a power interruption. In the event the memory is full, the old data is overwritten by the new data.

The console stores up to 4080 complete sets of weather data with associated time and date stamp. The base station will lose all of the weather data if there a power interruption. In the event the memory is full, the old data is overwritten by the new data.

Show button presses to get to interval setting

Example 1: 4,080 complete sets of weather data = 68 hours of memory at 1 minute interval

Example 2: 4,080 complete sets of weather data = 204 hours of memory at 5 minute interval

Example 3: 4,080 complete sets of weather data = 1,020 hours of memory at 15 minute interval

Ambient Weather stations are not designed to connect and send data over an open-air Internet connection such as cellular or satellite-based Internet. Even though the station may connect we cannot guarantee that it will send data consistently. This is due to a concept called Time to Live or TTL which states that our website is expecting data to arrive at a specific interval. The way data packets are handled by these type of connections does not allow the data to arrive when our website is expecting it. Therefore, the data is rejected as being invalid for not arriving at the correct time and you may see no data transmitting or inconsistent data transmission.

Ambient Weather stations are not designed to connect and send data over an open-air Internet connection such as cellular or satellite-based Internet. Even though the station may connect we cannot guarantee that it will send data consistently. This is due to a concept called Time to Live or TTL which states that our website is expecting data to arrive at a specific interval. The way data packets are handled by these type of connections does not allow the data to arrive when our website is expecting it. Therefore, the data is rejected as being invalid for not arriving at the correct time and you may see no data transmitting or inconsistent data transmission.
